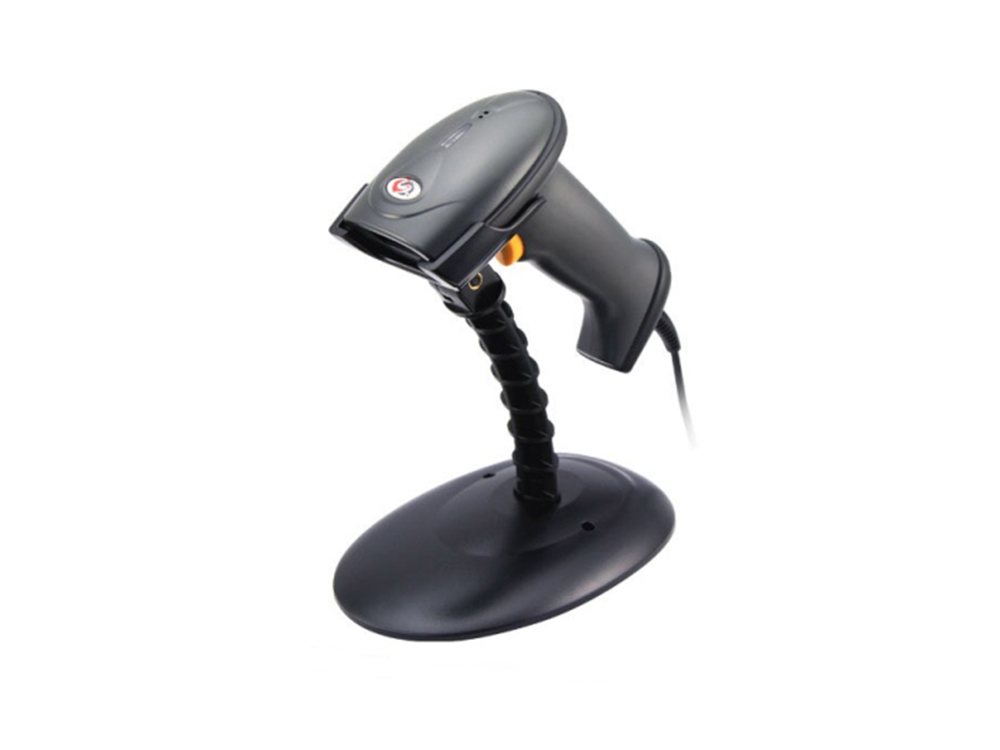

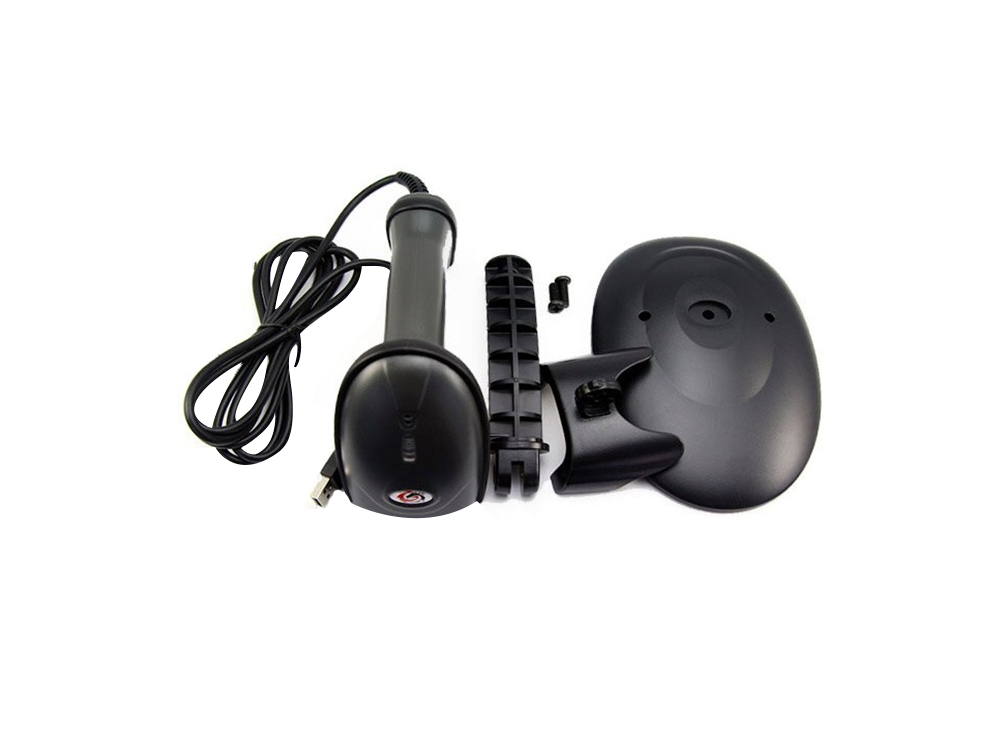

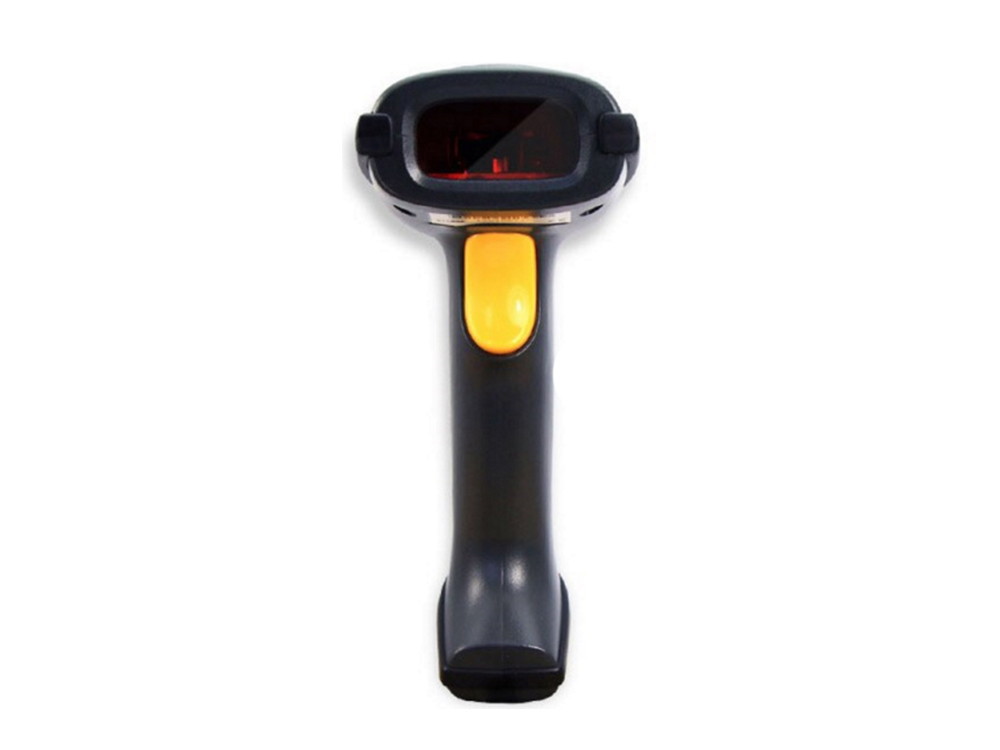

XL-6322

Περιγραφή

Model Number: XL-6322A
Light Source: Visible Laser Diode 650nm
Scan Pattern: Single Scan
Decode Rate: 300 times/second
Scan Precision: 3mil
Scan Width: 30mm scan window, 220mm@200mm
Scan Depth of Field: 0-330mm (0.33mm pcs0.9)
Elevation Angle: 65°
Deflection Angle: 55°
Support Interface: PS-2(KB); RS-232; USB-HID; USB-Virtual COM
Print Contrast: 10% UPC/EAN 100>#/strong###
Mention Pattern: Buzzer, Indicator
Scan Mode: Automatic & Continuous & Manual
Size: L × W × H: 175mm × 73mm × 102mm
Weight: 246g
Material: ABS+PC
Voltage: 5VDC
Operating Current: 85mA
Static Current: 30mA
Laser Class: Meet the Grade I National Criteria for Laser Safety
EMC: CE& FCC DOC compliance
Operating Temperature: – 0°C to 50°C
Storage Temperature: – 40°C to 70°C
Humidity: 5% to 85% relative humidity, non-condensing
Light Levels: Daylight,3000-8000LUX
Shock: Designed to withstand 1.5M drops
Decoding Capability: EAN-8/EAN-13/UPC-A/UPC-E/Code 39/Code 93/Code 128/EAN128/Codaber/Industoal 2 of 5/ Interleave 2 of 5/Matrix 2 of 5/MSI。
